Enhance Workplace Safety with Multi-Tone Programmable Speech Hooter
In today’s fast-paced industrial environments, effective communication is key to ensuring safety and productivity. Introducing our latest innovation, the Multi-Tone Programmable Speech Hooter, designed to revolutionize workplace safety with its advanced features and versatile applications.
A Made-in-India Marvel

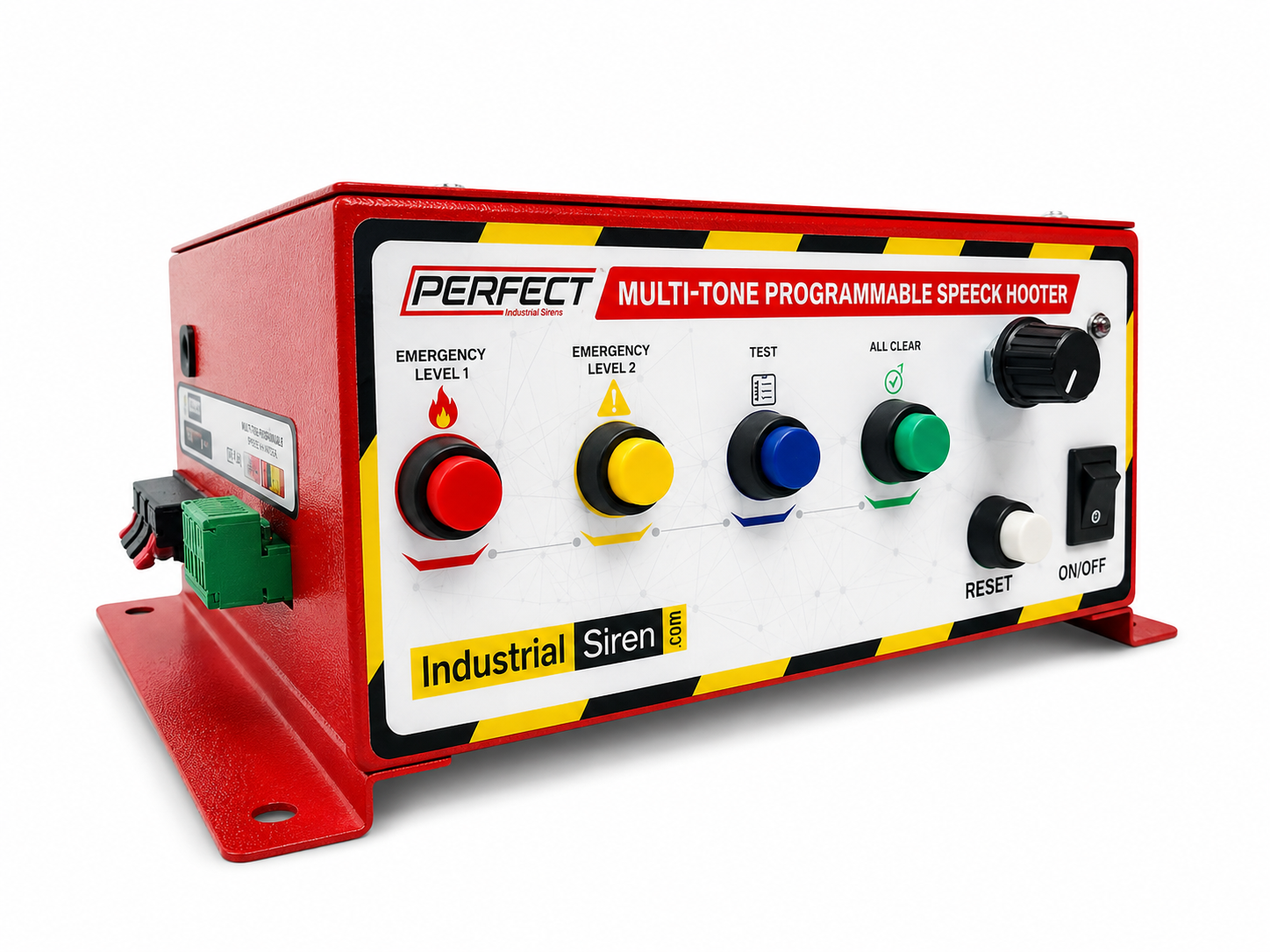

| Multi-Tone Programmable Speech Hooter |
|---|
| Multi-Tone Programmable Speech Hooter |
| Microcontroller-Based Pre-Recorded Voice Announcement System |
| Feature: Specification |
| • Tone Selection: 4 programmable tones with latching push buttons and 1 reset button. |
| • Audio Output: 48W dual-channel (L/R) supports up to 2 P.A. horn speakers. |
| • Audio Decoder: High-quality 24-bit decoder; supports MP3/WAV formats. |
| • Inputs: – USB 2.0 port for programming. |
| – 4-channel isolated potential-free terminals for tone/message activation. |
| – 1 terminal for remote reset. |
| – 3.5mm line-in jack for mobile/computer connections. |
| – 2 terminals for Speaker connections. |
| • Memory: 16 MB internal flash memory. |
| • Playback: Supports “”Power-on Play”” for immediate playback. |
| • Power Requirements: 230V/110V AC 50 Hz or 12V DC for backup operation. |
| • Sound Output: 110-120 dB. |
| • Visual Alerts (Optional): Compatible with 12V warning lights; optional revolving/flashing LED available. |
| • Enclosure: Red powder-coated sheet metal. |
| • Enclosure Dimensions: 205 x 170 x 95 mm (W x L x H) Weight: 2.9 kg. |
| • Speaker Dimensions: 315 x 165 x 320 mm (W x L x H) Weight: 2.0 kg. |
| Standard Package: Includes 1 control unit and 1 PA-type horn speaker. |
Our Multi-Tone Programmable Speech Hooter is a testament to Indian ingenuity, boasting state-of-the-art technology and unparalleled functionality. Powered by a smart microcontroller, this model offers multi-tone sound output, providing clear and concise alerts in even the busiest of environments.
Seamless Integration
With the ability to receive remote digital inputs from sensors, PLCs, or DCS systems, our Speech Hooter initiates the playback of pre-recorded messages corresponding to specific triggers. Its rotary switch allows users to select their preferred message or tone, while volume control ensures optimal sound clarity.
Wide-Area Coverage
Equipped with provisions to connect two 8 Ohm PA horn speakers, our Speech Hooter ensures that alerts are audible across the entire shop floor, even in noisy conditions. Its robust sheet metal powder-coated enclosure can be conveniently placed on a table or wall-mounted for easy access.
Versatile Connectivity
For added flexibility, our model features a 3.5 mm jack to connect a mobile phone as an audio source, enabling the playback of pre-recorded messages directly from a mobile device. Users can also customize tones or messages using the provided USB 2.0 port, offering ultimate control and adaptability.
Tailored Applications
From EOT cranes to coal handling plants, our Speech Hooter finds its place in a wide range of industrial settings. Whether announcing crane movements or conveying critical alerts on conveyor operations, this model delivers messages in multiple languages, ensuring clarity and comprehension.
- EOT Crane: Savdhan Crane Chal Rahi Hai
- Coal Conveyor: Savdhan Conveyor Chalo Hone Wala Hai
- Combined stacker / reclaimers: Savdhan Stacker Chalo Hone Wala Hai
Enhanced Safety, Swift Action
The greatest benefit of our Multi-Tone Programmable Speech Hooter lies in its ability to provide voice-based alerts for critical parameters. By delivering prompt and effective notifications, operators can take swift action to mitigate risks and ensure a safe working environment.
Elevate your workplace safety standards with the Multi-Tone Programmable Speech Hooter from PERFECT SIRENS. Combining cutting-edge technology with user-friendly features, this model offers a comprehensive solution for alerting and communication needs. Experience the power of voice-based alerts and empower your workforce to respond decisively to potential hazards. Contact us today to learn more and take the first step towards a safer tomorrow.
